Annovi Reverberi Innovation Range: Dual Technology System

Dualtech Technology System:

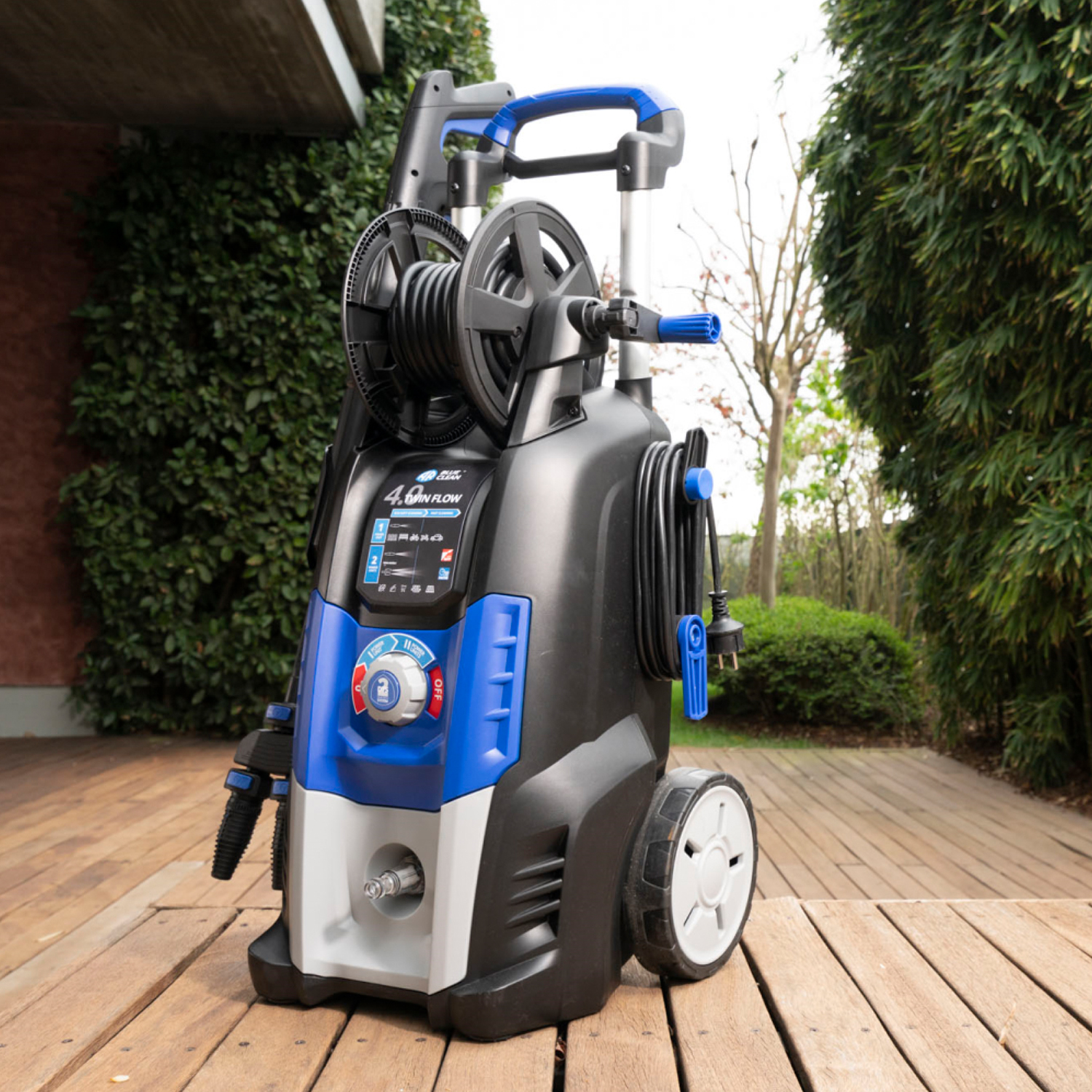

DTS Series 4.0 Twin Flow

Pressure: 150 Bar
Flow Rate:
810 l/hr

150 Bar High Pressure Washer for medium to stubborn dirt uses with a dual tech system for a variety of applications while choosing the right pressure and flow rate.


Pressure Washer designed to meet regular medium to heavy use needs at home, garden & trade uses. Innovative with the dual tech system, it is ideal for washing cars, vans, trucks, boats, pool, walls, stairs, paving, working tools, roofs, etc. Comes with a dual nozzle to increase efficiency by 70%. Handy with wheels and telescopic handle, comes with a Total Stop System for safety and a built-in accessory storage.

DTS is the innovative technological system, AR patented, which gives you the washing power of two motorpumps when you need it. This system achieves notably superior results when compared to those obtained with a single pump pressure washer.

Hard working, innovative and versatile, they provide unprecedented performance thanks to the synergy of 2 Power Units which double the water flow. The newly marketed Twin Flow high pressure washers were designed for numerous applications and, based on the type of work to be done, you can choose whether to run just one or both Power Units by means of the special switch. How does it work?

By selecting the ECO Soft Cleaning mode, one Power Unit is activated for light washing, and is particularly suitable for wooden surfaces, cars, bicycles, patio furniture and outdoor fabrics.

But both Power Units are activated with the FAST Cleaning mode: thanks to the dual flow of water, the washing job will go much faster, and be more intense and more effective. It’s therefore ideal for removing the most stubborn dirt from resistant surfaces such as stone and concrete slabs, stairs, swimming pools, brick walls and metal railings.

Improved performance.
Saves time.



Telescopic handle with static hose reel

High pressure foam lance bottle

Built-in accessories holder

In-pressure hosereel with super flexible hose 8m

3 positions rotative switch off / Eco Soft Cleaning / Fast Cleaning

Inspectable water intake filter

DUALTECH TECHNOLOGY SYSTEM – Perfect pressure and flow rate for a variety of applications

Pressure Washer designed to meet regular medium to heavy use needs at home, garden & trade uses. Innovative with the dual tech system, it is ideal for washing cars, vans, trucks, boats, pool, walls, stairs, paving, working tools, roofs, etc. Comes with a dual nozzle to increase efficiency by 70%. Handy with wheels and telescopic handle, comes with a Total Stop System for safety and a built-in accessory storage.

DTS 4.0 TF (2DTS) sml 2

Dualtech Technology System (DTS) is the innovative technology system for Annovi Reverberi patented high pressure washers that have 2 Power Units inside the machine. This system achieves notably superior results when compared to those obtained with a single pump pressure washer.

DTS 4.0 TF (WWP)

It can provide an increase in Washing Performance Power of up to 50%, both in terms of intensity and extension of the jet, with a resulting reduction in cleaning times. In fact, the flow rate from the 2 Power Units can reach up to 850 l/h, double that of a normal home & garden high pressure washer.

DTS 4.0 TF (5m)

This also means that the jet can reach up to 5 metres away, allowing you to easily clean even very large overhead surfaces, which is difficult to do with a home & garden high pressure washer. Therefore, excellent performance but a high level of customisation.

PRODUCT FEATURES

SAFETY Total Stop System with motor thermal protector
PUMP Dual Tech System – Perfect pressure and flow rate for a variety of applications
– Two 3 Axial stainless steel pistons wobbleplate pumps
– Tempered stainless steel pistons
– Automatic by-pass valve with pump head pressure discharge
– Twin single-phase universal motor with thermal protector
MAINTENANCE Inspectable water filters
DETERGENT TANK High pressure detergent tank
PORTABILITY Two-wheel trolley with telescopic handle, accessory holders, hose reel, 3 position switch and detergent tank
WARRANTY 2-year warranty for manufacturer defects
WATER TEMP Use safely with water temperatures up to 122 ° F/50 °
POWER SOURCE Electric cable length 5m

PRODUCT DATA

MAX PRESSURE (bar) 150
MAX PRESSURE (psi) 2200
MAX FLOW RATE (l / h) 810
MAX FLOW RATE (gph) 214
POWER (Kw) 2.5
RPM 3400
POWER SUPPLY (Hz) 50
POWER SUPPLY (V) 230
UNIT DIMENSIONS (LxWxH) 387x388x895mm
WEIGHT(Kg) 14

PRODUCT APPLICATIONS

Activate 1 POWER UNIT when you need to remove light dirt from bicycles, motorcycles, cars or you want fences, outdoor furniture and sun shades to seem like new.

Exploit the synergy of 2 POWER UNITS together when you need to get rid of the toughest dirt and stains from stone and cement flooring, brick walls and sidings, roofs or construction applications.

PRODUCT APPLCATIONS

STANDARD ACCESSORIES

Trigger Gun
Code: 46328

Lance Extension (42cm)
Code: 46332

Twin Nozzle
Code: 46337

Rotary Jet Nozzles (x2)
Code: 46329

Adjustable Jet Nozzle
Code: 46330

Foam Lance Bottle (0.6L)
Code: 46344


HP Hose (8m)
Code: 46335

OPTIONAL ACCESSORIES

Five in One Nozzle
Code: 46342

Extension HP Hose (8m)
Code:  46336

Water Filter Kit
Code: 41593

Click Fast Kit
Code: 41580

Adaptors Kit
Code: 41758

Adapters Kit
Code: 41890


Adjustable Head Nozzle Adaptor
Code: 46009

Extension Lance Kit (1,6m)
Code: 46355

Fixed Brush
Code: 46353

Fixed Brush
Code: 41577

Rotary Brush
Code: 41578

Power Brush
Code: 46362


Aquasweeper
Code: 46686

Water Suction Kit
Code: 41592

Pipe Drain Kit (10m)
Code: 41588

Pipe Drain Kit (16m)
Code: 41693

WARRANTY CARD


AR Blue Clean offers a unique 2-year Home & Garden use warranty on Home and Garden range of Pressure Washers against defects due to faulty material and/or workmanship. If the product becomes defective within the warranty period, AR Blue Clean together with partners in various territories will repair, or at AR Blue Cleans discretion, replace free of charge.

All repair claims must be made through a AR Blue Clean authorized service centre and should be supported by the warranty registration card & purchase receipt.

ONLINE REGISTRATION


Partner in Southern Africa:
Tool Pro Distribution, Tool Pro House, 13 Wolfram Street, CE6, Vanderbijlpark 1911, Gauteng, South Africa, Tel: +27 (0)16 931 1266



Twin Nozzle: Two jets, half the time with the exclusive accessory

With the twin Nozzle, you can double the washing surface, saving you time and effort.

Every Twin Flow high pressure washer is equipped with a Twin Nozzle, an invaluable accessory that lets you clean large surfaces quickly and effectively, such as concrete and brick walls, floors and swimming pools, saving up to 70% of your time.

By doubling the area that can be washed, the twin nozzle significantly reduces work times. Based on the cleaning result you would like to achieve, it can be used with two rotary jet wash nozzles, two adjustable jet nozzles, or one rotary jet wash nozzle and one adjustable jet nozzle.
